MR-01
Wood hinge installation
Quick Lock · wood posts · stair or angled runs
Open matching PDF manual →Suzhou Lance Technology Co., Ltd.WWW.MR-RAIL.COM · MR.RAIL@FOXMAIL.COM
INSTALLATION RESOURCES
Model-specific
installation videos.
Review the connection workflow before selecting the model, cable construction and post arrangement.
MR.RAIL VIDEO LIBRARY
Choose the matching model family.
These videos are practical installation references. Follow the current model manual for the approved dimensions, tools and project-specific preparation.
MR-02
Wood level installation
Quick Lock · wood posts · level or straight runs
Open matching PDF manual →MR-03
Metal hinge installation
Quick Lock · metal posts · stair or angled runs
Open matching PDF manual →MR-04
Metal straight-tail installation
Quick Lock · metal posts · level or straight runs
Open matching PDF manual →MR-06
Through-post metal installation
Through-post Quick Lock · level or straight runs
Open matching PDF manual →MR-07
Hybrid installation
Customer-requested 1/8-inch Hybrid · 1×19 cable only
Open matching PDF manual →BEFORE YOU INSTALL
Confirm the project conditions.

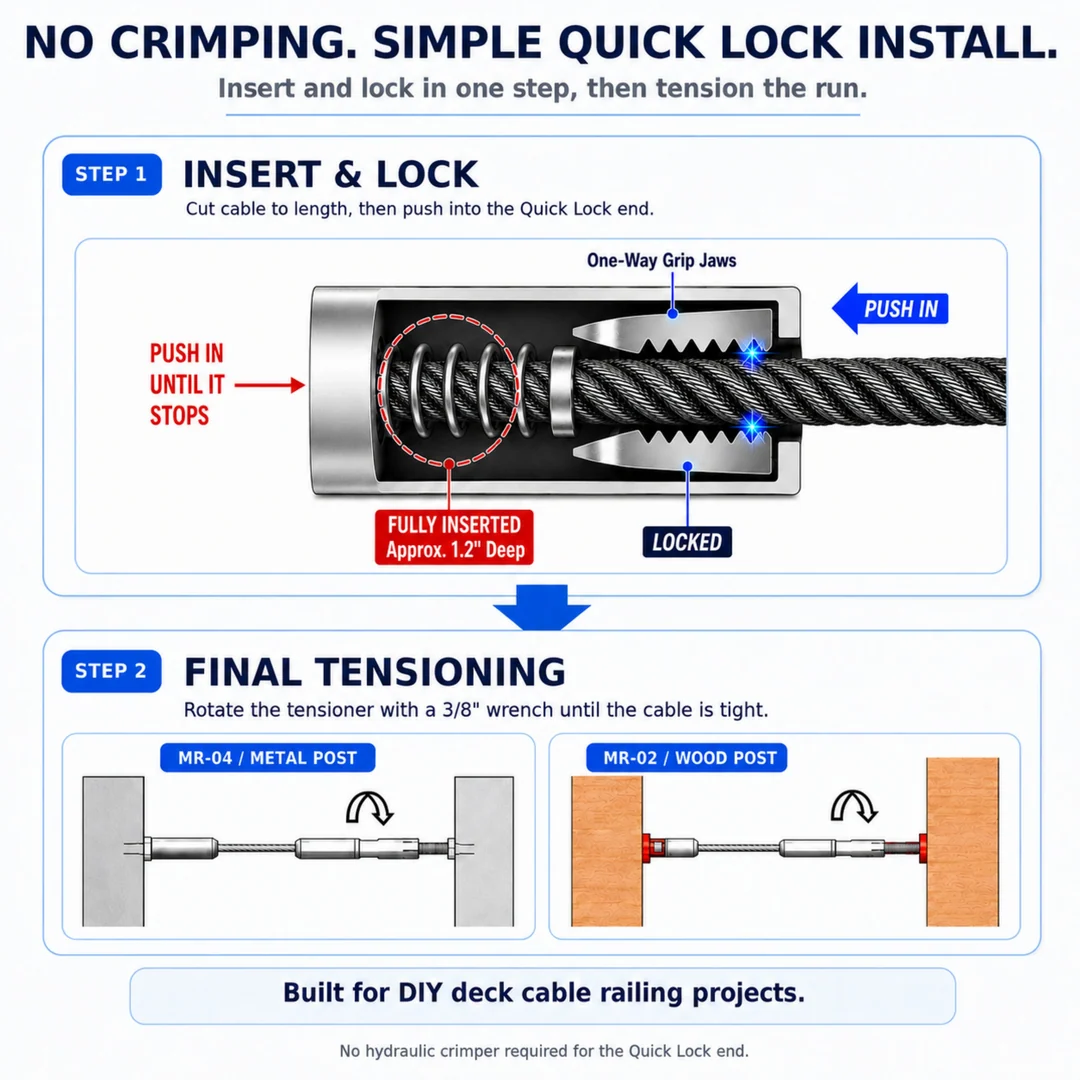

Quick Lock requires matching 1×19 stainless steel cable. Swage accepts matching 1×19 or 7×7 cable. Confirm the diameter, post material and run geometry before drilling or crimping.
