INSTALLATION RESOURCES
Cable railing hardware
manual library.
Find the current product-type instructions while keeping the established MR-01 through MR-08 download addresses unchanged.
PRODUCT CATALOG 2026
Keep the MR.RAIL catalog at hand.
English PDF · 24 pages · 8.1 MB
CURRENT PDF MANUALS
Choose by model family and application.
The installation sequence is shared within each product type. Preparation dimensions and tool sizes must follow the approved specification for the selected cable diameter.
MR-01 / MR-11 / MR-21 Installation Manual

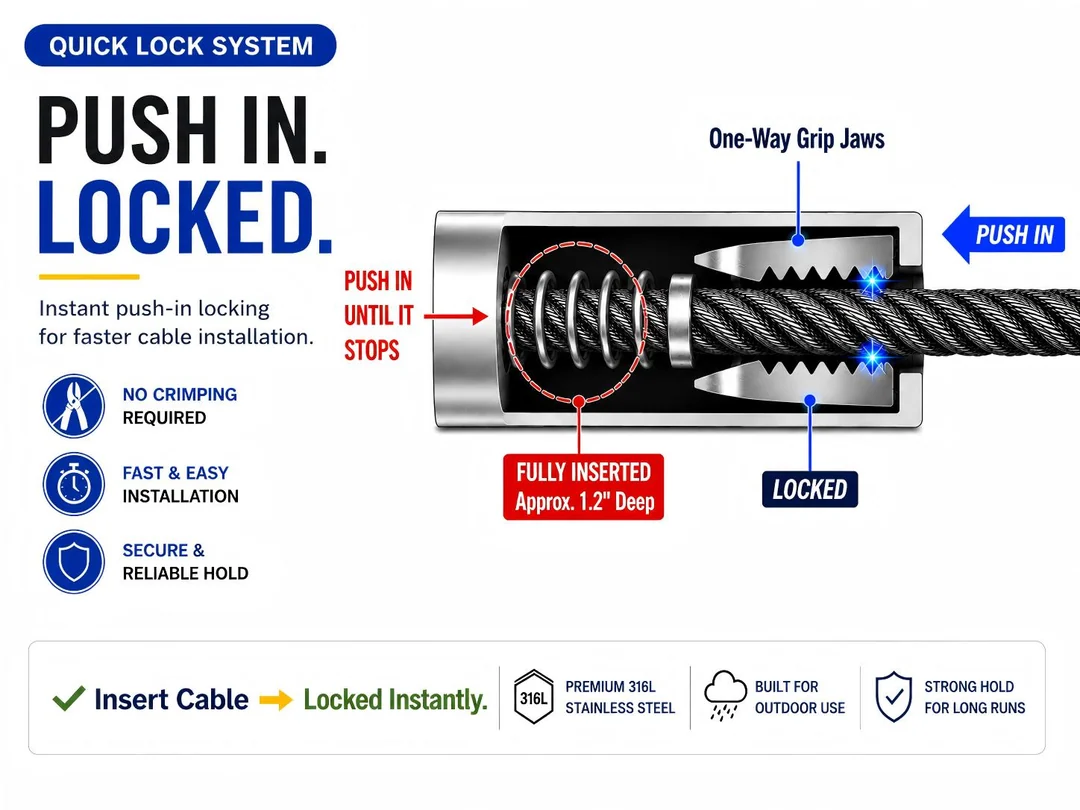

Quick Lock · Wood posts · Stair or angled runs · 1×19 cable
Open the PDF →
MR-02 / MR-12 / MR-22MR-02 / MR-12 / MR-22 Installation Manual
Quick Lock · Wood posts · Level or straight runs · 1×19 cable
Open the PDF →
MR-03 / MR-13 / MR-23MR-03 / MR-13 / MR-23 Installation Manual
Quick Lock · Metal posts · Stair or angled runs · 1×19 cable
Open the PDF →
MR-04 / MR-14 / MR-24MR-04 / MR-14 / MR-24 Installation Manual
Quick Lock · Metal posts · Level or straight runs · 1×19 cable
Open the PDF →
MR-05 / MR-15 / MR-25MR-05 / MR-15 / MR-25 Installation Manual
Through-post Quick Lock · Stair or angled runs · 1×19 cable
Open the PDF →
MR-06 / MR-16 / MR-26MR-06 / MR-16 / MR-26 Installation Manual
Through-post Quick Lock · Level or straight runs · 1×19 cable
Open the PDF →
MR-07MR-07 Installation Manual
Hybrid · Customer-requested projects · 1/8 inch only · 1×19 cable
Open the PDF →
MR-08 / MR-18 / MR-28MR-08 / MR-18 / MR-28 Installation Manual
Surface-mount Swage · Wood posts · Stair or level runs · 1×19 or 7×7 cable
Open the PDF →
Confirm the cable diameter and construction, exact model, post material, stair or level condition, mounting arrangement and required access before drilling, cutting cable or making a permanent Swage connection.
Check the cable-size family guide →SELECT BEFORE YOU INSTALL
Use the matching product guide.
These guides help identify the correct product family. The current PDF remains the installation reference for the selected model.
VISUAL PROJECT RESOURCES
Review the installation in context.
Use the model-specific videos with the anonymized project photo record when preparing a distributor, contractor or OEM review.
Cable railing installation resource FAQ
Which manual should I use for MR-12 or MR-22?
Use the MR-02 family manual above for the wood-post level-run Quick Lock category. Confirm the exact model and cable diameter; preparation dimensions and tool sizes must follow the approved specification for that model.
Can Quick Lock fittings accept 7×7 cable?
No. MR.RAIL Quick Lock uses matching 1×19 stainless steel cable only. The Swage family supports matching 1×19 or 7×7 cable. MR-07 Hybrid remains 1×19 only.
Is MR-09 a tensioner, and where is its manual?
MR-09, MR-19 and MR-29 are size-matched Quick Lock release tools, not tensioners. Use them only for adjustment or cable removal before final tensioning. Refer to the instructions for the selected Quick Lock fitting; this library has no separate MR-09 PDF.
Have the installation-manual download addresses changed?
No. The MR-01 through MR-08 PDF addresses remain unchanged so existing product and Amazon installation links continue to work.
Does this guide certify my railing design?
No. Follow the selected fitting manual, approved complete project design and applicable local requirements. These resources do not establish structural capacity or code compliance.
