Completed residential cable railing project

APPLICATION EVIDENCE

Residential cable railing
project case.

An anonymized photo record showing deck, stair and post applications. Product fit and project terms must be confirmed for each quotation.

ANONYMIZED PROJECT

From prepared posts to a finished railing run.

This case shows how cable railing hardware can be reviewed across level and stair sections in a residential setting. It is visual application evidence, not an engineering approval or a substitute for the current model manual.

APPLICATION

Residential deck and stairs

Wood and composite/PVC post details are shown in the supplied project photos.

REVIEW POINTS

Post, cable and run geometry

Separate level, stair and post conditions before selecting the model family.

DOCUMENTS

Manuals and selector

Use the matching installation manual and the current model selector before ordering.

PROJECT PHOTO RECORD

Real installation context for purchasing review.

Images are presented without customer identity or address. Confirm the exact model, diameter, cable construction, supplied parts and commercial terms in the quotation.

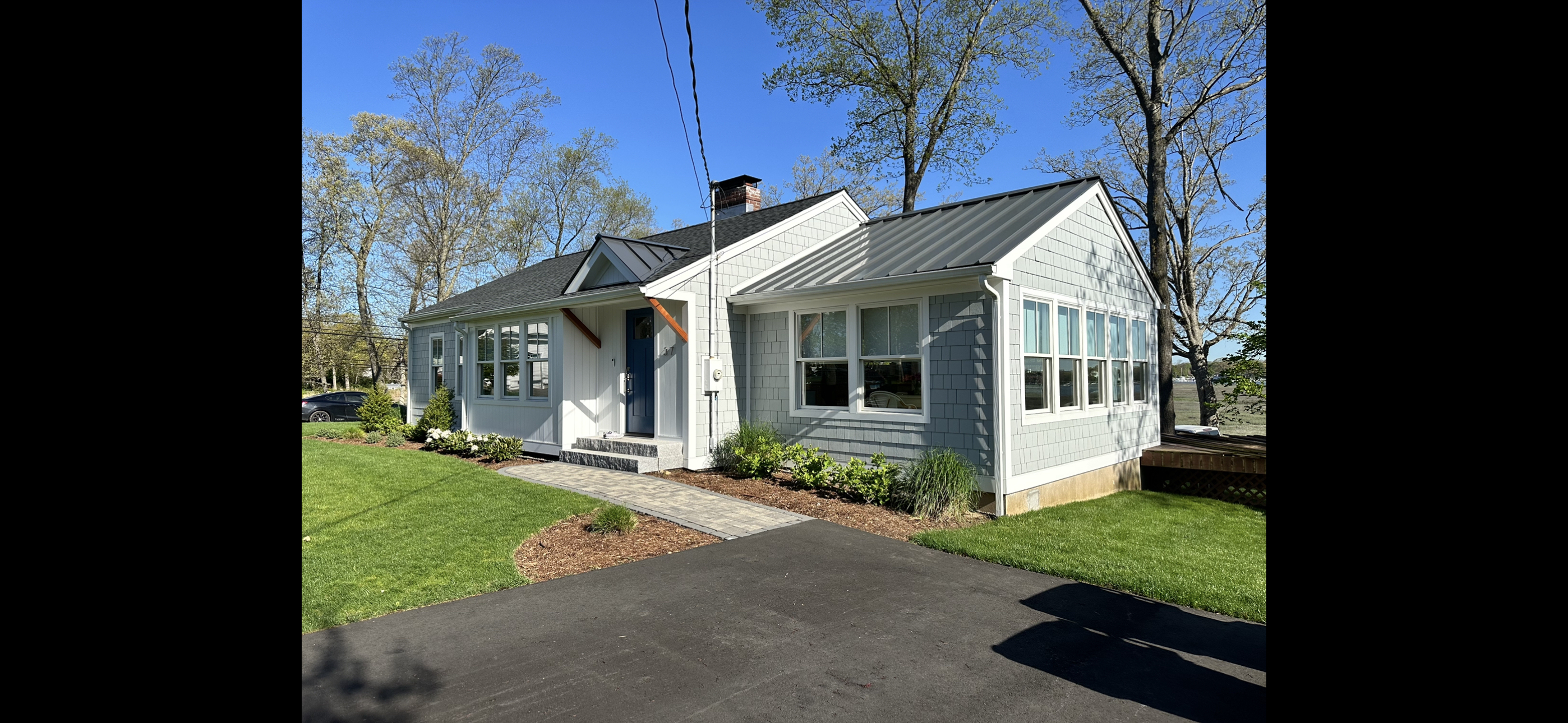

Residential project overview before the railing work was completed.
Residential project overview before the railing work was completed.

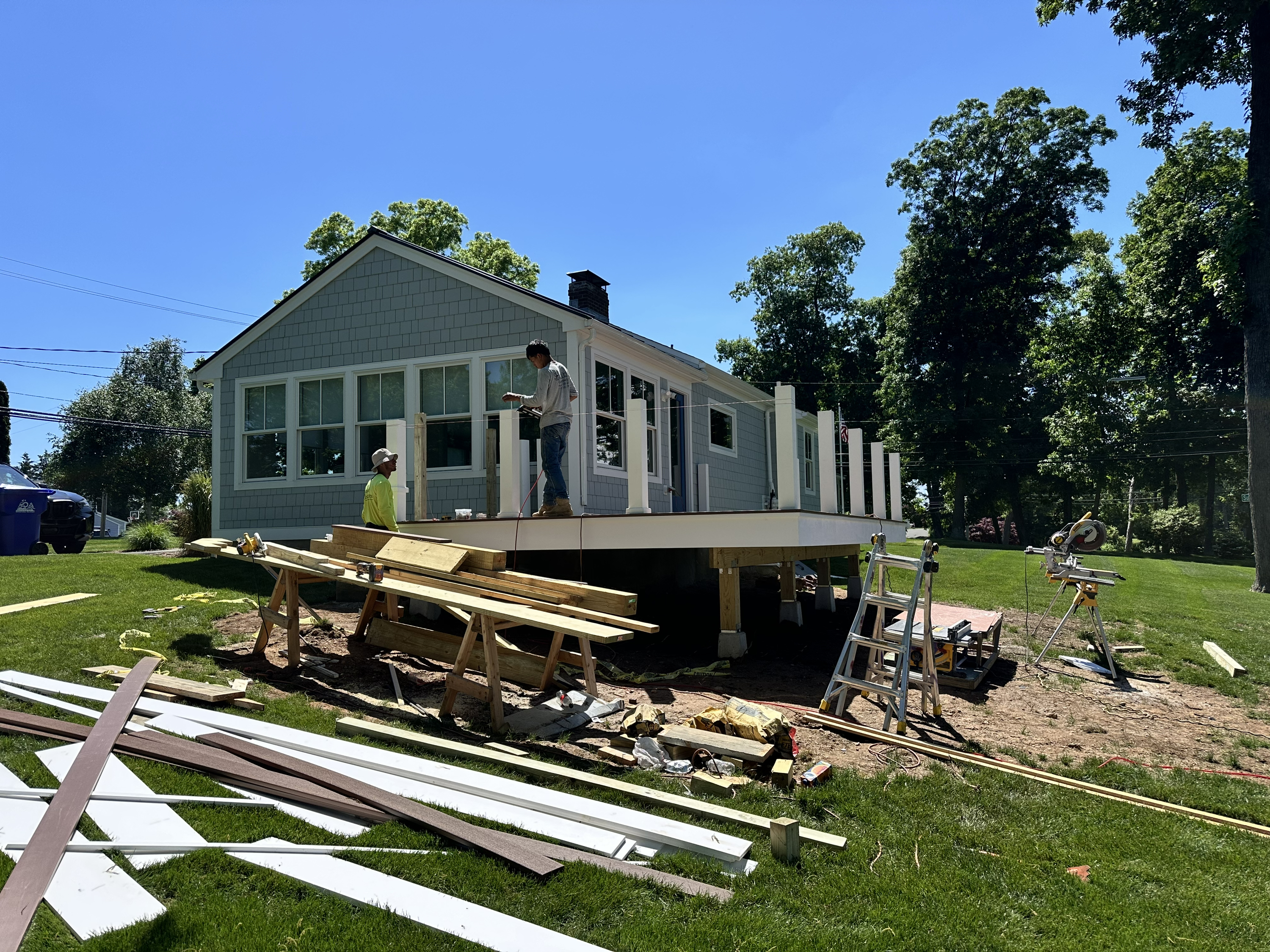

Deck and post area during project preparation.
Deck and post area during project preparation.

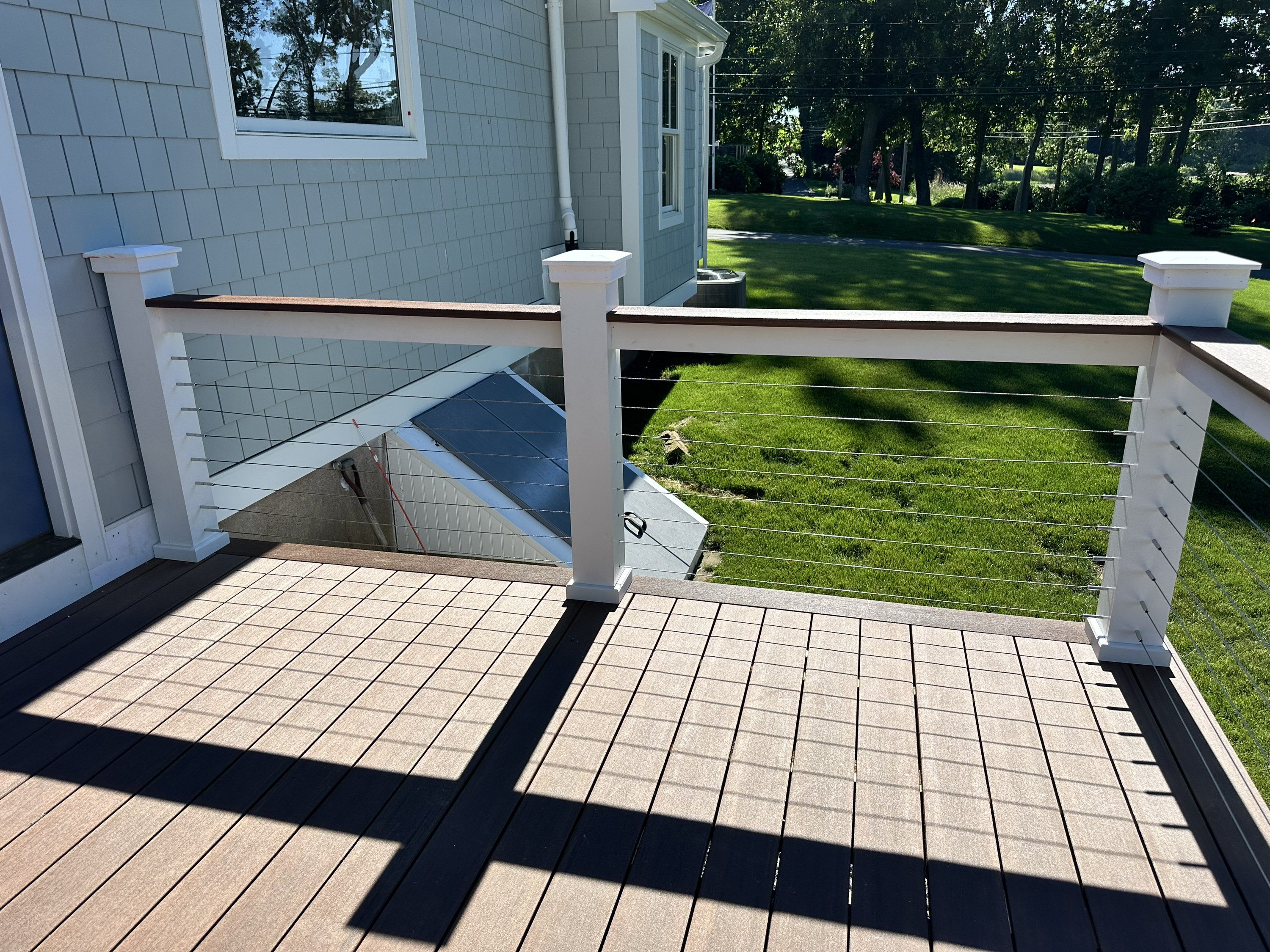

Completed level cable railing on a residential deck.
Completed level cable railing on a residential deck.

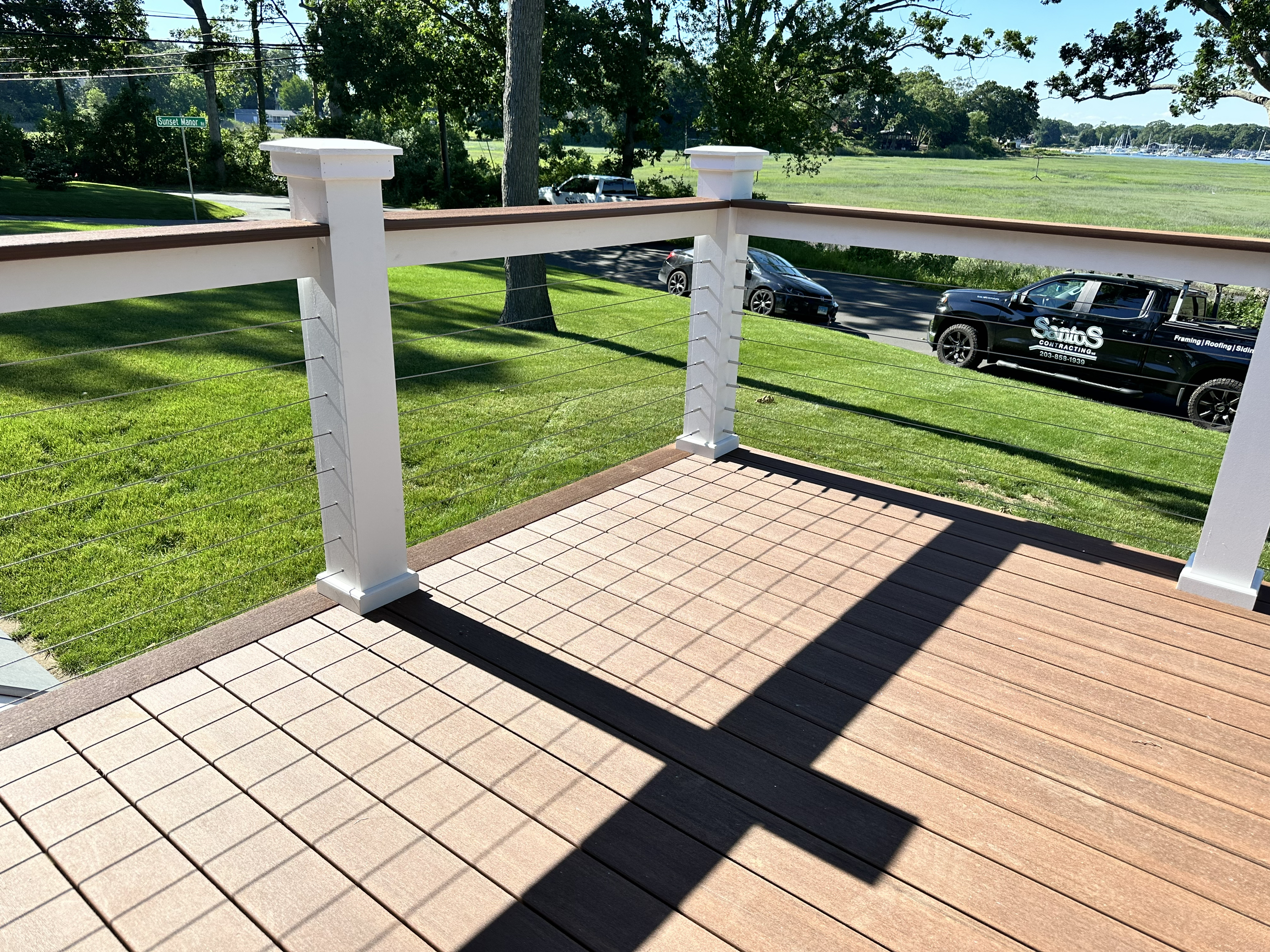

Cable lines and fittings installed between finished posts.
Cable lines and fittings installed between finished posts.
Angled view of the completed cable railing run.
Angled view of the completed cable railing run.

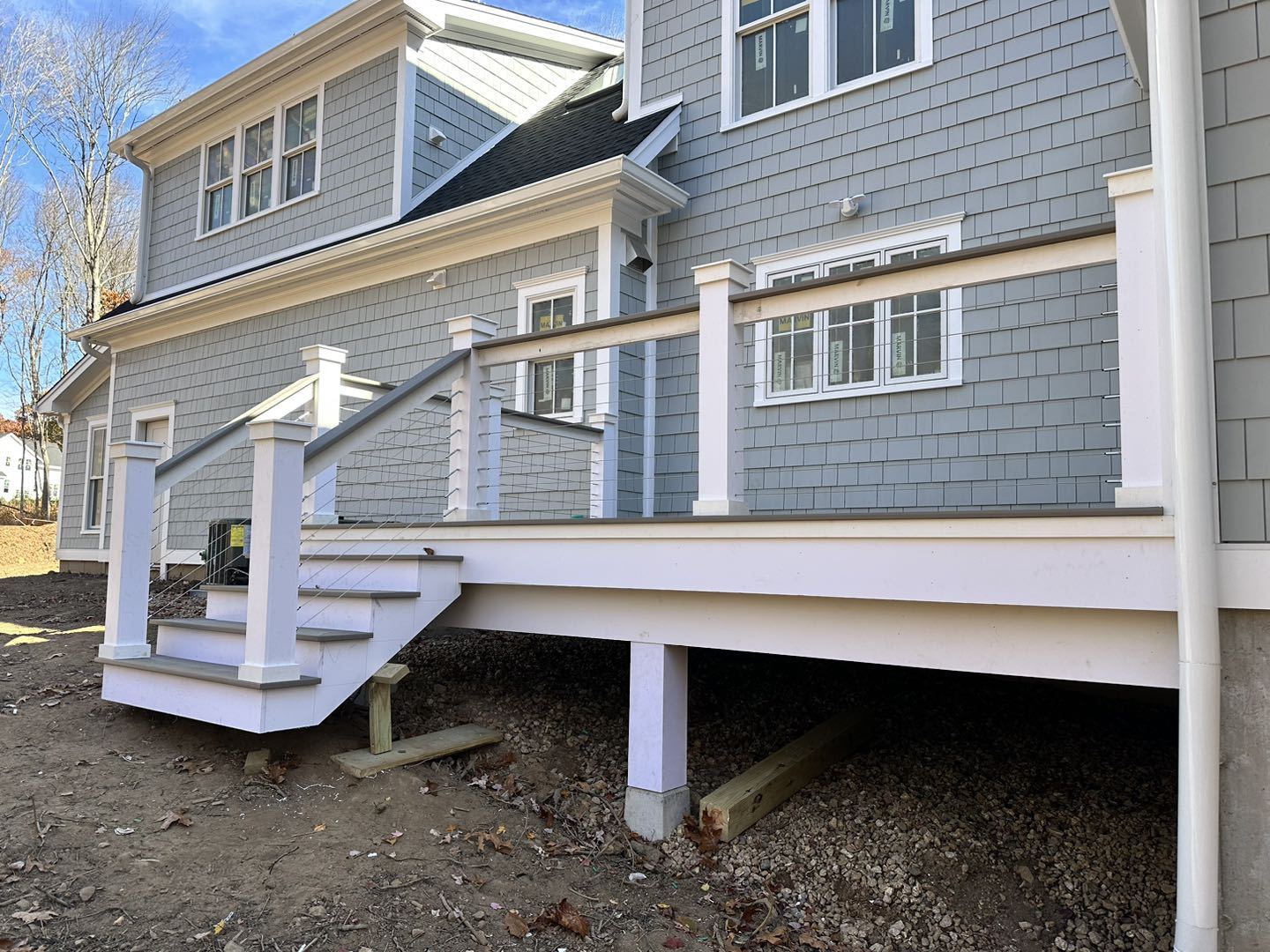

Cable railing following a residential stair run.
Cable railing following a residential stair run.

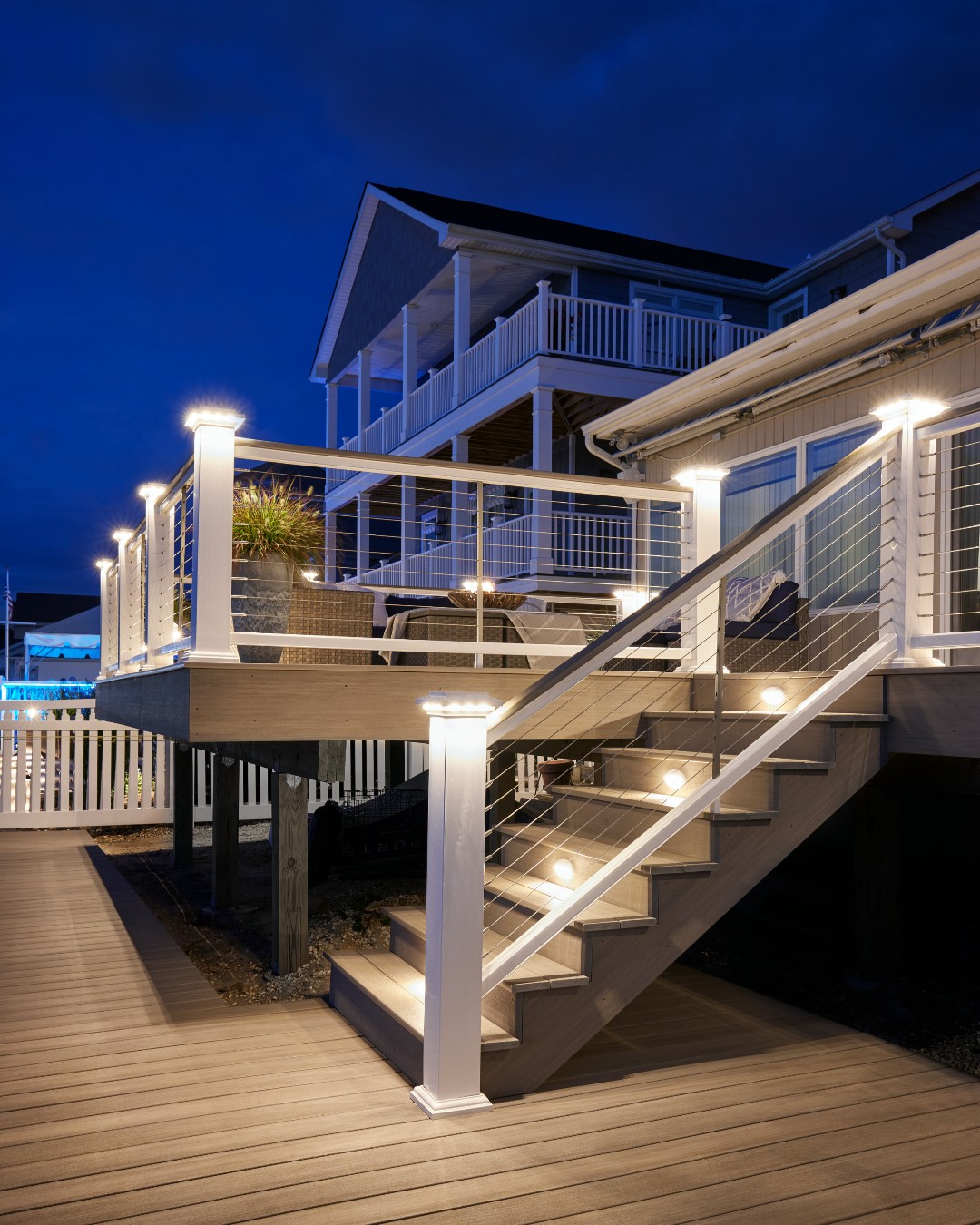

Completed railing viewed from the exterior.
Completed railing viewed from the exterior.

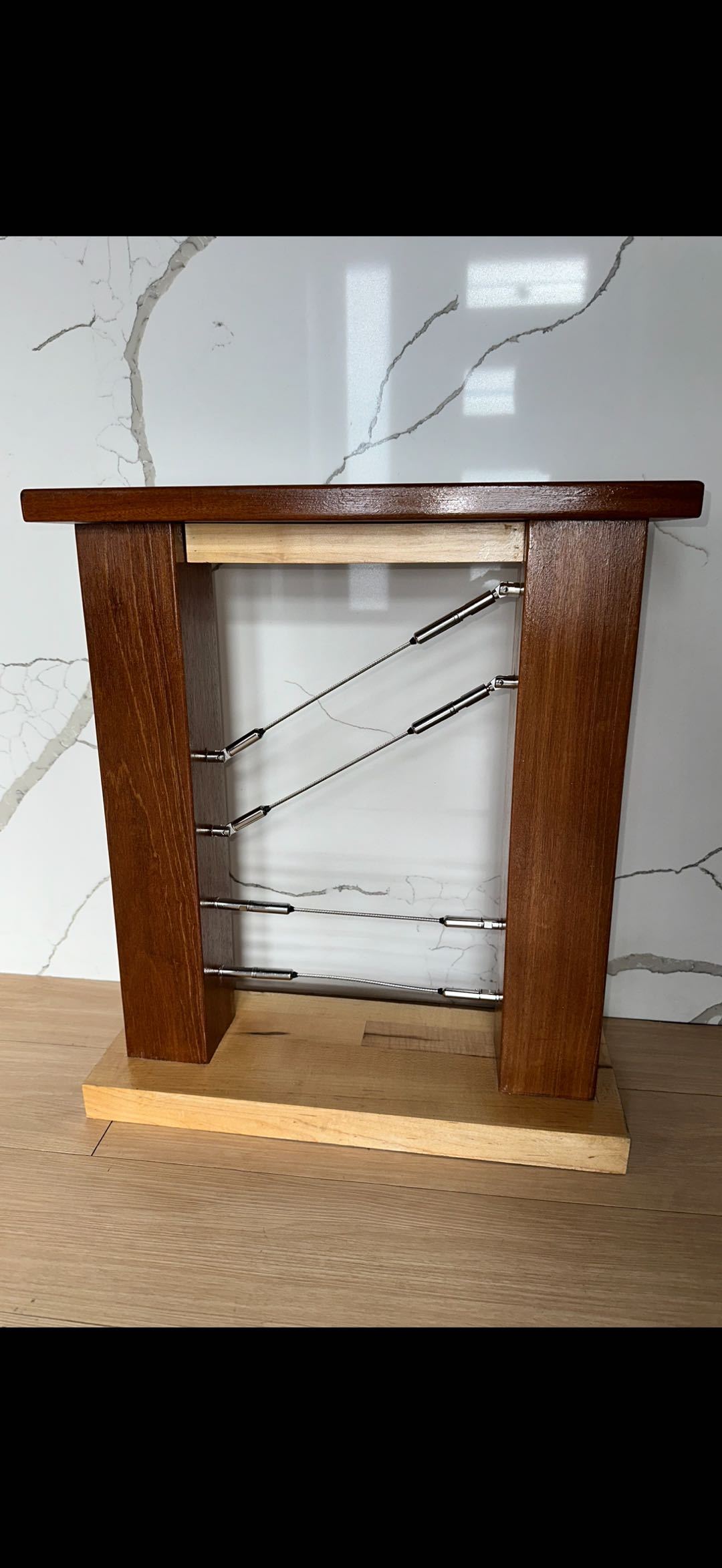

PVC and wood post application shown in the project material.
PVC and wood post application shown in the project material.

NEXT REVIEW STEP

Turn the application into a purchasing list.

Send the post material, run geometry, cable diameter, cable construction, model quantities and destination for a project-specific review.

SELECT HARDWARECompare standard models →
WATCH INSTALLATIONOpen installation videos →
REQUEST REVIEWPrepare an inquiry →

PLANNING A SIMILAR PROJECT?

Send the model, cable and post details for review.
