HYBRID SYSTEM

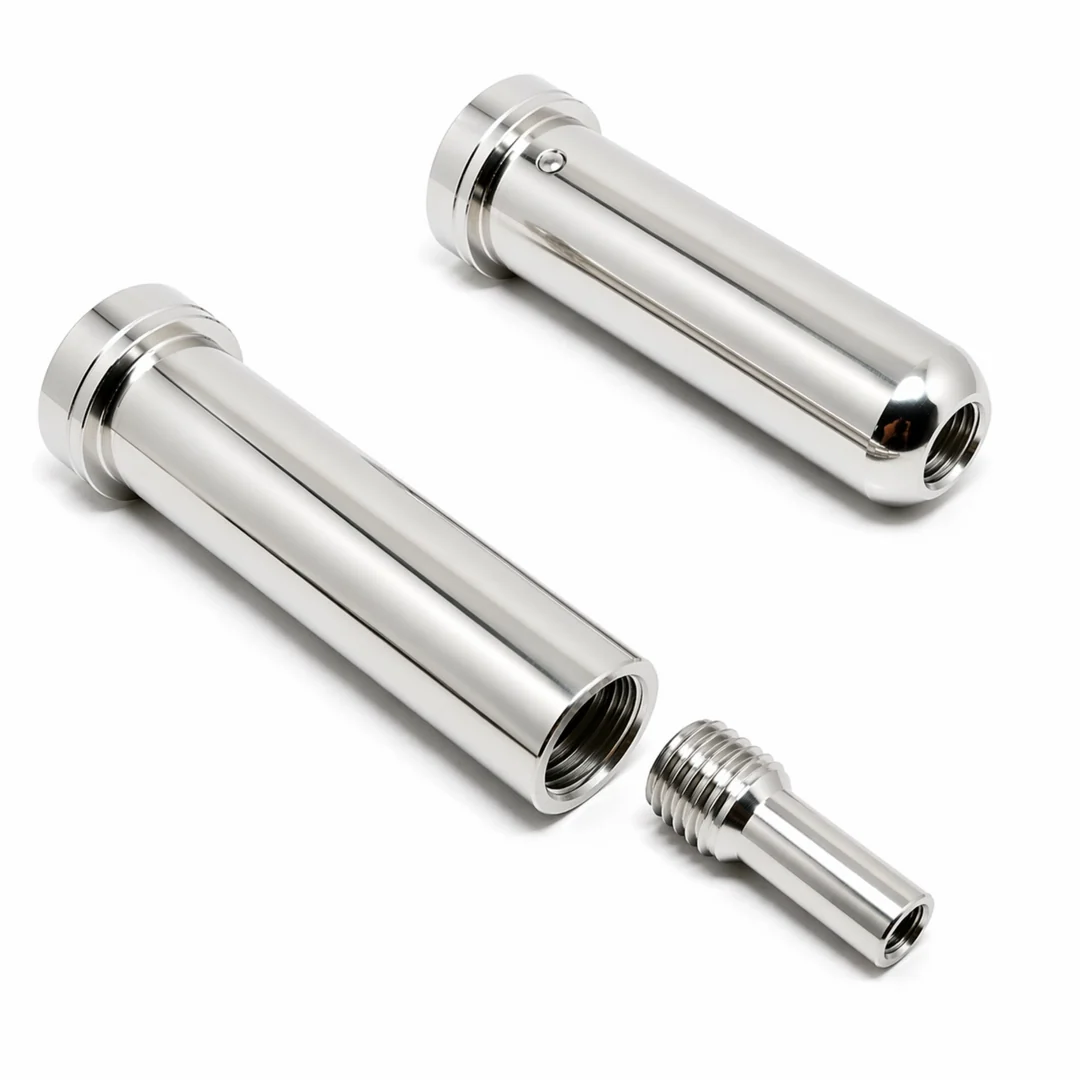

Quick Lock + Swage Hybrid Tensioner
MR-07
A customer-requested 1/8" hybrid system with a push-in Quick Lock end and a permanent Swage end for a clean, lower-visibility installation.
Material316 Stainless Steel
ApplicationHidden-style through-post installation
Cable1×19 stainless steel cable
Sizes1/8" only · Available on request
MODEL FAMILY
MR-071/8"
PRODUCT HIGHLIGHTS
Designed around the installation.
Quick Lock connection on one end
Swage connection on the opposite end
Crimping required only on the Swage side

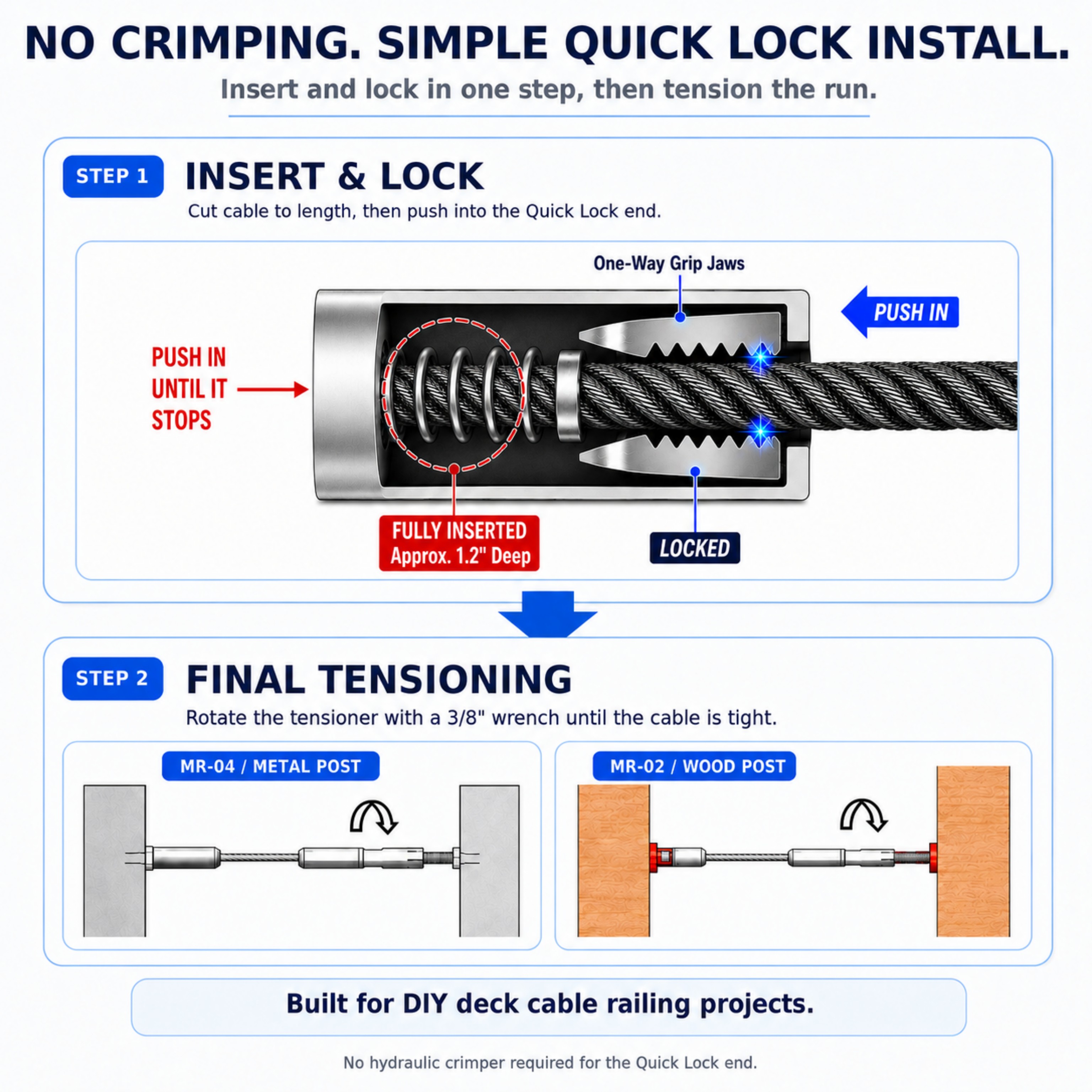

CONNECTION TECHNOLOGY
Hybrid connection method
The Quick Lock end provides push-in installation while the opposite Swage end is permanently crimped after cable length and position are confirmed.
Technology comparison →
INSTALLATION GUIDE
Installation steps for the requested model.
The reference sequence applies within MR-07. Hole size, thread specification and tool size must follow the approved specification for the selected cable diameter and project configuration.
Prepare aligned through-holes according to the approved model specification.
Install the Swage tensioner on one post and the Quick Lock ending on the opposite post.
Insert the matching 1×19 cable fully into the Quick Lock end and position it inside the Swage end.
Confirm cable length and position, permanently crimp the Swage side, then complete final tensioning.
Tools and preparation
Hydraulic crimping tool, drill and bit specified for the selected model, cable cutter, pliers and hex key.
RELATED PRODUCTS
Continue building the system.
Model documentation and selection
Confirm the exact model, cable construction and diameter before ordering. The selected manual and approved project design govern installation; this page is not a structural or code-compliance certificate.
